DZL series coal-fired hot water boiler introduction

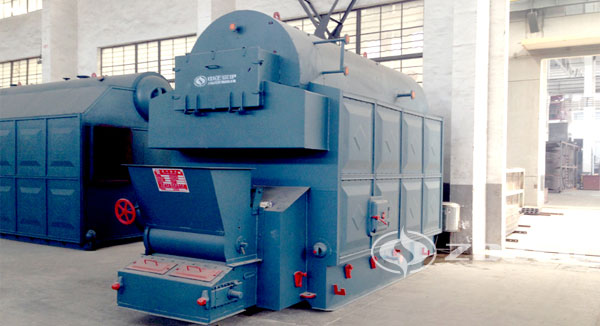

DZL horizontal chain coal-fired hot water boiler is a horizontal three-return water-fire tube boiler. Two fire tubes are arranged in the drum, and water-cooled wall tubes are arranged on both sides of the furnace; The combustion equipment uses a light chain grate to achieve mechanical coaling, and is equipped with drums and induced draft fans for mechanical ventilation. The fuel falls from the coal hopper to the grate, and after the furnace enters the furnace, it burns. The flue gas passes through the upper combustion chamber of the rear arch, and the combustion chamber passes upwards. The shed tube smoke chamber enters the first tube bundle to the front cigarette box, and then the former smoke. The box is folded into the second bundle to the rear smoke box. It is drawn into the flue, dust collector and chimney by the induced draft fan and finally discharged to the atmosphere.

The boiler has high automation level, automatic adjustment of boiler feed water, high and low water level alarm, low water level interlock protection, and interlocking protection of lead and blower. Mechanization of coal and slag on the boiler has reduced the labor intensity of the workers and the auxiliary equipment is complete.

Product Advantage

1. The boiler adopts a high-efficiency heat transfer element-threaded flue gas pipe, coupled with a reasonable flue gas flow rate, so that the boiler's thermal efficiency is 6-8 percentage points higher than the national professional standards.

2. The arch tube sheet and threaded smoke pipe make the boiler shell change from quasi-rigid body to quasi-elastic body, cooperate with airfoil flue, and completely avoid the defects of cracking of traditional pyrotechnic boiler high temperature tube sheet.

3. Reasonable water circulation loop and unique return water ejector (hot water boiler) can improve the water speed of riser and avoid water wall bursting.

4. The boiler adopts inertial separation of smoke and dust in the furnace, supplemented by high-efficiency multi-tube dust collector, so that the dust concentration of the boiler can meet the requirements of the first class area.

5. A reasonable boiler structure can support its own weight without a steel frame.

6. The boiler adopts energy saving and strong radiation furnace arch to ensure stable combustion of fuel.

7. The boiler adopts high-standard and high-quality auxiliary machinery, accessories and automatic control equipment to ensure the safe and stable operation of the boiler, while reducing the labor intensity of the boiler operator.

8. compact structure, 1-20t/h (0.7-14MW) boiler can be monolayer layout.

Technical data
