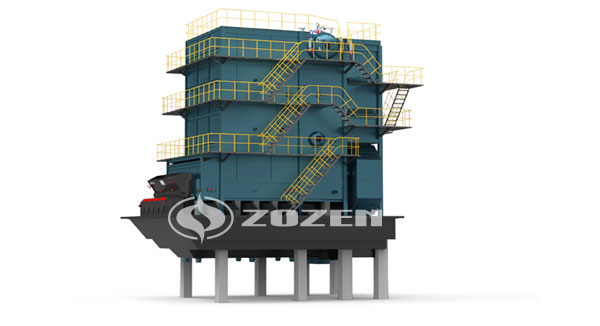

SHL series coal-fired steam boiler introduction

The SHL series coal-fired steam boiler is a natural boiler with two cylinders arranged horizontally. A dense convective tube bundle is arranged between the upper and lower drums, a water-cooled wall is arranged around the combustion chamber, a front and rear water-cooled wall is arranged to form the front and back drying required for combustion, a convective superheater is arranged at the outlet of the drying chamber, and a finned cast iron economizer and a tubular air preheater are arranged at the tail flue shaft. Combustion equipment is flake chain grate driven by N-type continuously variable gearbox, which can adjust grate speed arbitrarily to meet the needs of load fluctuation. The series boilers are designed according to bituminous coal and anthracite respectively, and are ventilated by separate bin type machinery in order to improve the stability of chain grate combustion. This series of boiler is equipped with console.

The boiler has a saturated steam boiler and a superheated steam boiler. The saturated steam boiler can be used for industrial and mining enterprises to produce steam and domestic heating. The superheated steam boiler can be used with 5MW steam turbine generator set.

Product Advantage

1. the design thermal efficiency is 4~5 percentage points higher than the national standard, energy saving and high efficiency.

2. Large furnace design and tail air preheater provide hot air to meet the stable and efficient combustion of various fuels.

3. the water circulation loop is large, providing sufficient water circulation power, and the water circulation is safe and reliable.

4. scale type chain grate, with less coal leakage, combined with bilateral air supply, is convenient for combustion adjustment.

5. the boiler has large volume of water and strong load adjustment capability.

6. The convective tube bundle is equipped with a flue gas guide plate, which guides the flue gas to scour the tube bundle as transversely as possible, improves the heat transfer coefficient, ensures a reasonable flue gas velocity and reduces the wear and tear on the heating surface.

7. the cleaning surface of each heating surface is convenient to ensure long-term and efficient operation of the boiler.

8. The boiler control system is perfect to ensure the safe operation of the boiler. At the same time, it can realize a variety of automatic control and reduce labor intensity.

Technical data
