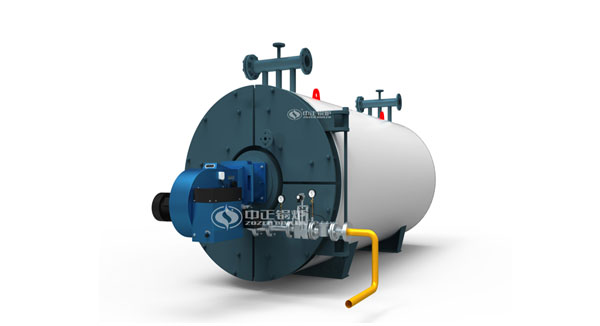

YQW series gas-fired horizontal thermal fluid heater introduction

Gas-fired thermal oil boilers can operate stably even in low-pressure environment, and the temperature can be set by computer. The operation of the boiler is relatively stable, the temperature control is more accurate, and the thermal efficiency can reach more than 90%. Horizontal gas fired thermal oil boiler is an ideal heating equipment. It is widely used in various industries.

The heating surface of the boiler body of a YQW series gas-fired horizontal thermal fluid heater is compact, and the heating surface is composed of a compact disc arranged inside and outside. The inner tube is a radiant heating surface. The outer surface of the outer tube and the inner tube form a convection heating surface. The boiler is composed of the upper body and the lower combustor. After the combustion is fully combusted in the combustion chamber, the radiant heating surface absorbs most of the heat. The high-temperature flue gas enters the convective heating surface for heat exchange, and after it is discharged from the boiler, the air needed for the combustion of the boiler is heated in the air preheater, and then the flue gas is sent to the chimney and discharged into the atmosphere through the dust collector.

The principle of YQW series gas-fired horizontal thermal fluid heater: generally using natural gas as fuel and thermal fluid heater as heat carrier. Then it uses the circulating oil pump to force the liquid phase circulation, after transferring the heat energy to the heating equipment, the heat carrier then returns to the reheated DC special industrial furnace.

Product feature:

1, it has a very thick insulation layer to minimize heat loss.

2, thickening the boiler heat resistant steel pipe is the guarantee of boiler safety. Advanced technology and procedures ensure the safety and stability of the boiler. Automatic flame alarm device. Automatic control of boiler pressure and temperature;

3, Reasonable boiler structure, hot oil flow rate and flow rate of the overall consistency, to ensure that the furnace tube will not burst because of carbon deposition. It not only guarantees the safety of the boiler, but also prolongs the service life of the oil.

4, According to the requirements of users, a boiler can output heat conducting oil of different temperatures to heat the heater at the same time.

5, According to the requirements of users on different occasions, all equipment will be installed together and pried out.

6, It is a horizontal boiler with neat and generous appearance, convenient and simple operation.

7, Its controller is centralized control, which integrates automatic detection, control and chain alarm. Boiler operation is not required to be on duty.

8, Horizontal three return is all back structure. Increasing the energy saver is equivalent to 4 return to the city structure, and the thermal efficiency is higher.

9, The large capacity of boiler water and the large amount of steam, reduce the frequency of boiler start-up and shutdown, prolong the life of burner and electronic components;

10, It is a fire tube structure, no explosion tube phenomenon occurs, the use of more secure.

11, Its front and back smoke box can be opened, and the boiler maintenance is very convenient.

Technical data
