Product thermal capacity: 2.8-29 MW
Working pressure: 1.0-1.25 MPA
Outlet temperature: 95/70℃, 115/70℃
Applicable fuels:Bituminous coal, lean coal, anthracite
Applications: Heating, hotels, schools, hospitals
Send E-mail:zhulin@zozen.com

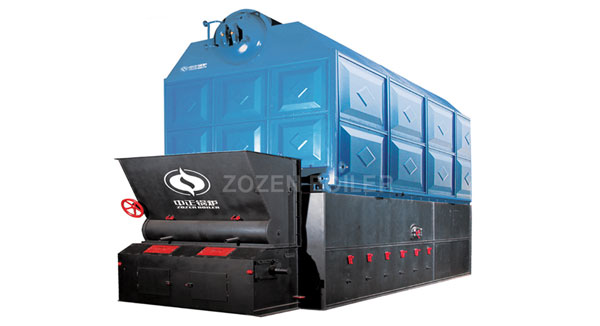

The SZL series coal-fired hot water boiler is a double boiler water pipe chain grate boiler. The boiler body has two upper and lower drums arranged longitudinally along the boiler center. The front part of the upper drum and the water wall tubes on both sides form the radiant heating surface of the furnace. The tube bundles between the rear part of the upper drum and the lower drum form the convective heating surface. The economizer is arranged at the back of the boiler. After the high-temperature flue gas generated by combustion is absorbed part of heat in the furnace, it enters the convective heating surface through the cooling chamber and then transfers the flue gas to the chimney and discharges it into the atmosphere through the economizer and the dust collector.
The boiler has high automation level, automatic adjustment of boiler feed water, high and low water level alarm, low water level interlock protection, and interlocking protection of lead and blower. Mechanization of coal and slag on the boiler has reduced the labor intensity of the workers and the auxiliary equipment is complete.
1, Horizontal boiler cylinder is longitudinally arranged with water tube type boiler, smooth tube water wall tube is densely distributed on both sides of furnace, convective tube bundles are arranged between upper boiler tube and lower boiler cylinder.
2, the heating area is large and the heat transfer effect is good.
3, match the front and rear arch to make the combustion condition good and full combustion.
4, the front and rear arch can be adjusted to adapt to the wide variety of coal.
5, The factory is divided into upper and lower parts and assembled on site. The installation cycle is short and the installation cost is low.
6, pressure (temperature) and water shortage should be protected by multiple cascading protection.
7, pressure (temperature) and water shortage should be protected by multiple cascading protection to ensure the safety and reliability of the boiler.
8, meet GB13271 emission requirements.
| Model | SZL4.2-1.0/115/70-M | SZL5.6-1.0/115/70-M SZL5.6-1.25/130/70-M |
SZL7.0-1.0/115/70-M SZL7.0-1.25/130/70-M |
SZL14-1.0/115/70-M SZL14-1.25/130/70-M |
SZL21-1.0/115/70-M SZL21-1.25/130/70-M |
|||||||||
| Rated heat supply（MW） | 4.2 | 5.6 | 7.0 | 14 | 21 | |||||||||
| Working pressure（MPa） | 1.0 | 1.0/ 1.25 | 1.0/ 1.25 | 1.0/ 1.25 | 1.0/ 1.25 | |||||||||
| Rated water temperature（℃） | 115 | 115/130 | 115/130 | 115/130 | 115/130 | |||||||||
| Backwater temperature（℃） | 70 | 70 | 70 | 70 | 70 | |||||||||
| Heated area（㎡） | proper | radiation | 24.5 | 26.1 | 23.4 | 61.5 | 109.21 | |||||||
| convection | 119.0 | 184.0 | 227.9 | 346.2 | 549.8 | |||||||||
| Economizer（㎡） | 130.8 | 130.8 | 244.16 | 472.0 | 330.4 | |||||||||
| Acreage of grate（㎡） | 7.62 | 10.5 | 11.8 | 20.8 | 28.1 | |||||||||
| Applicable fuel | Biomass | AII\P | ||||||||||||
| Basement calorific value（KJ/kg） | 21000 | |||||||||||||
| Boiler fuel consumption（kg/h） | 1122 | 1488 | 1860 | 3600 | 4340 | |||||||||
| Boiler thermal efficiency（%） | 82.8 | 83.2 | 83.2 | 85.8 | 86.0 | |||||||||
| Weight of biggest part for transportation（t） | 21 | 25 | 28 | 30 | 31 | |||||||||
| Overall dimension of boiler assembledLxWxH(m) | 7.0x2.7x3.5 | 6.9x3.2x5.3 | 7.9x3.3x3.5 | 11.0x3.2x3.5 | 9.9x3.3x3.6 | |||||||||
